Worked-Out Exercises: Derivatives & Techniques of Differentiation
The following set of exercises is given together with hints, solutions, and solution paths. They are designed such that
you can first try to solve them and in case you need help, please, open the "hints" section. For checking your
answer, please, open the "solution" section and for getting more details or checking your way of solving the
exercise, please, open the "solution path" section.
|
|
|
Exercise 1: Graphs and Tangents |
| |
- Find the slope of the tangent line to the curve \( y = x - x^3 \) at the point \( (1, 0) \).
- Find an equation of the tangent line in part a.
- Graph the curve and the tangent line in successively smaller viewing rectangles centered at \( (1, 0) \) until the
curve and the line appear to coincide.
|
|
Hint
(please, click on the "+" sign to read more)
- compute the derivative \( f'(x) \) of \( f(x) = x - x^3 \) and then \( f'(1) \) is the slope
- use the point slope-point formula for a line
- see 'Solution Path'
|
|
Solution
(please, click on the "+" sign to read more)
- \( f'(1) = -2 \)
- \( y = -2 (x-1) \)
- see 'Solution Path'
|
|
Solution Path
(please, click on the "+" sign to read more)
- The slope at the point \( (1,0) \) is the value \( f'(1) \) of the derivative \( f' \) of \( y = f(x) \) at \( x = 1 \), i.e.
\[
\begin{eqnarray*}
f'(x) & = & \lim_{h \to 0} \frac{(x+h) - (x^3 + 3x^2 h + 3 xh^2 + h^3) -x + x^3}{h}\\
& = &
\lim_{h \to 0} \left( 1 - 3x^2 - 3xh - h^2 \right) \, \, = \, \, 1 - 3 x^2 \quad \Longrightarrow \quad f'(1) = -2 \, .
\end{eqnarray*}
\]
- The tangent at \( P(p_x, p_y) = P(1,0) \) is a line with slope \( m=-2 \) through \( P \), i.e. by virtue of the point
slope formula, we have
\[
y - p_y \, \, = \, \, m \cdot (x - p_x) \quad \Longrightarrow \quad y \, \, = \, \, -2 \cdot (x-1) \, .
\]

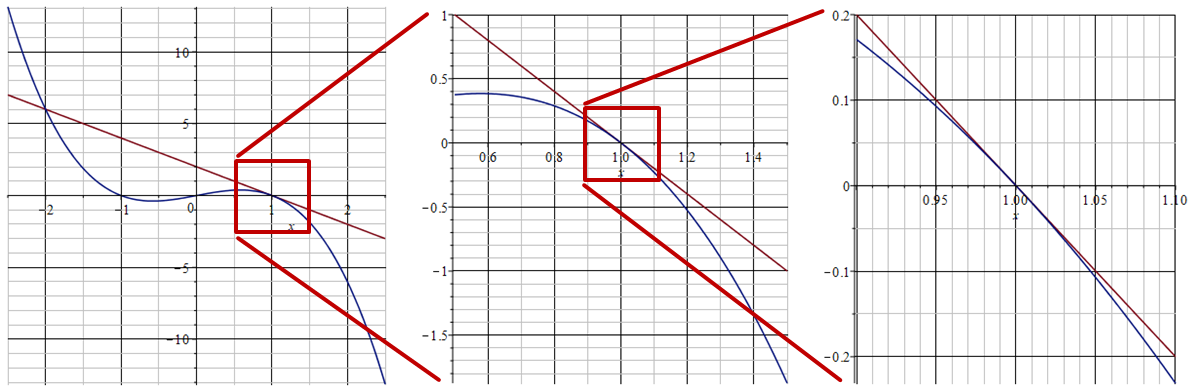

- The closer we zoom to the point of tangency the less is the observable difference between the graph of the function
and the tangent line. This circumstance will later enable us to use the tangent at a point as a 'good' approximation
of the function (i.e. replace the discussion of the behavior of the function close to the point of tangency by a,
often more easy, discussion of the behavior of the tangent line).
|
|
Exercise 2: Average Rates and Their Geometric
Interpretation |
| |

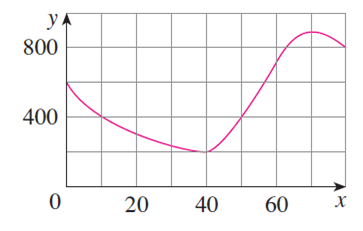

The graph of a function \( f \) is shown below:
- Find the average rate of change of \( f \) on the interval \( [20, 60] \).
- Identify an interval on which the average rate of change of \( f \) is \( 0 \).
- Which interval gives a larger average rate of change, \( [40, 60] \) or \( [40, 70] \)?
- Compute
\[
\frac{f(40) - f(10)}{40 - 10} \, ;
\]
what does this value represent geometrically?
|
|
Hint
(please, click on the "+" sign to read more)
- On an interval \([x_1, x_2]\), the average rate of change is \( \Delta y = f(x_2) = f(x_1) \) over
\( \Delta x = x_2 - x_1 \).
- Inspect the avearge rate for \([10,50]\) and generalize your findings.
- Compute and then compare the two rates.
- For which interval can this be interpreted as the arverage rate of change?
|
|
Solution
(please, click on the "+" sign to read more)
- \(10\)
- The average rate is \( 0 \) for all intervals \([x_1, x_2]\) with \(f(x_1) = f(x_2)\).
- The interval \( [40,60] \) gives the larger average rate of change of the two.
- This is the arverage rate of change on the interval \( [10, 40] \)
|
|
Solution Path
(please, click on the "+" sign to read more)
- With \( f(20) = 300 \) and \( f(60) = 700 \) we have that the average rate of change is
\[
\frac{\Delta y }{\Delta x} \, \, = \, \, \frac{f(60) - f(20)}{60-20} \, \, = \, \, \frac{400}{40} \, \, = \, \, 10 \,.
\]
- The average rate is \( 0 \) for all intervals \([t_1, t_2]\) with \(f(t_1) = f(t_2)\). For instance, \([10,50]\)
as \(f(10) = f(50) = 400\).
- The interval \( [40,60] \) gives the larger average rate of change of the two, as
\[
\begin{eqnarray*}
\frac{f(60) - f(40)}{60-40} & = & \frac{700 - 200}{20} \, \, = \, \, 25 \\
\frac{f(70) - f(40)}{70-40} & = & \frac{900 - 200}{30} \, \, \approx \, \, 23.3333
\end{eqnarray*}
\]
- The quantity
\[
\frac{f(40) - f(10)}{40 - 10} \, \, = \, \, \frac{200 - 400}{30} \, \, \approx \, \, -6.6667
\]
gives the arverage rate of change on the interval \( [10, 40] \).
|
|
Exercise 3: Non-Differentiability |
| |
Let the graph of \( f \) be given as below. State, with reasons, the numbers at which \( f \) is not differentiable.
|
|
Hint
(please, click on the "+" sign to read more)
Recall, a function is not differentiable at those points, where it is not continuous and/ or where the limit of the difference
quotient does not exist. Where do such cases arise for the given function?
|
|
Solution
(please, click on the "+" sign to read more)
- A function is not differentiable at those points, where it is not continuous. Here, this is the case at \( x = -1 \).
- A function is not differentiable at those points, where the limit of the difference quotient does not exist, i.e.
\[
\lim_{h \to 0} \frac{f(x+h) - f(x)}{h} \, \, \, \text{does not exist} \, .
\]
This can happen at 'kinks' at which the one-sided limits are different. Here, at \(x = 2\) there is such a kink.
|
|
Exercise 4: Sketching a Function |
| |
Sketch the graph of a function \(g\) for which the following properties hold:
\[
g(0) \, \, = \, \, g(2) \, \, = \, \, g(4) \, \, = \, \, 0 \, ,
\]
and
\[
g'(1) \, \, = \, \, g'(3) \, \, = \, \, 0 \, , \qquad
g'(0) \, \, = \, \, g'(4) \, \, = \, \, 1 \, ,
\]
and
\[
g'(2) \, \, = \, \, -1 \, ,
\]
as well as
\[
\lim_{x \to \infty} \, g(x) \, \, = \, \, \infty \, , \qquad \text{and} \qquad
\lim_{x \to -\infty} \, g(x) \, \, = \, \, -\infty \, .
\]
|
|
Hint
(please, click on the "+" sign to read more)

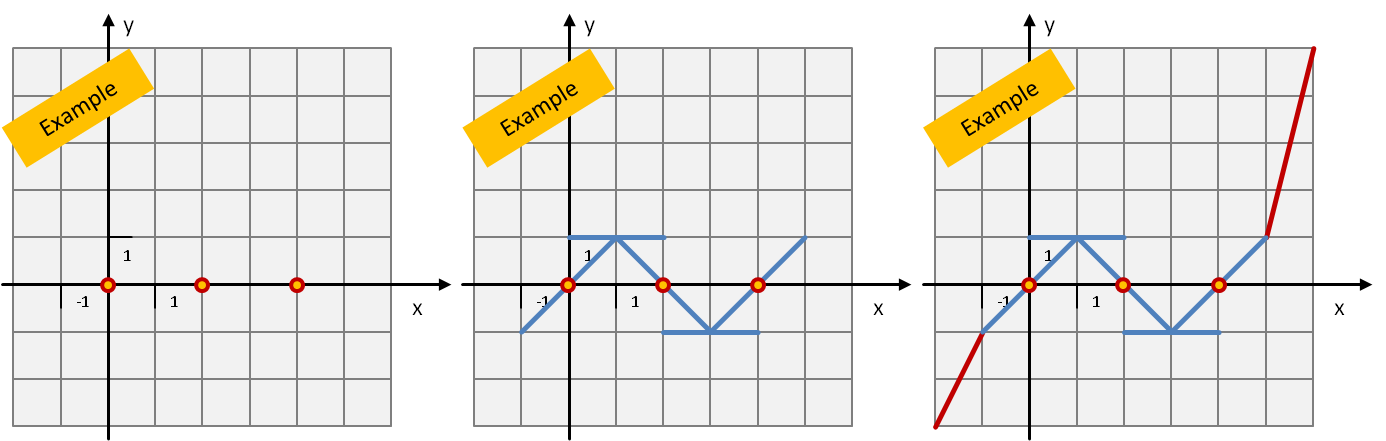

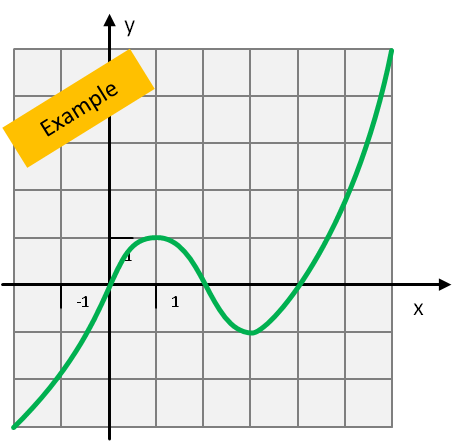

Successively make use of the given information to get a rough sketch of the behavior of the graph and then 'smoothen'
your result. I.e.
|
|
Solution
(please, click on the "+" sign to read more)
|
|
Exercise 5: Conecting the Graph of Faunction with
the Graph of its Derivative |
| |

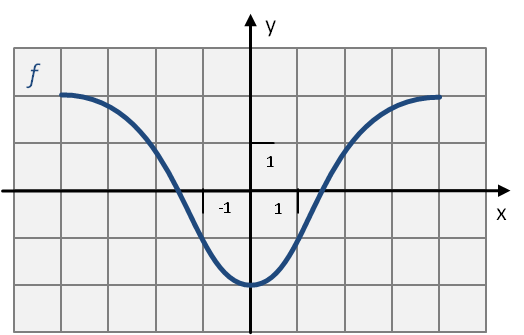

Trace or copy the graph of the given function \( f \). (Assume that the axes have equal scales.) Then estimate the derivative
at certain points of the graph of \( f \) to sketch the graph of \( f' \) below it.
|
|
Hint
(please, click on the "+" sign to read more)
|
|
Solution Path
(please, click on the "+" sign to read more)

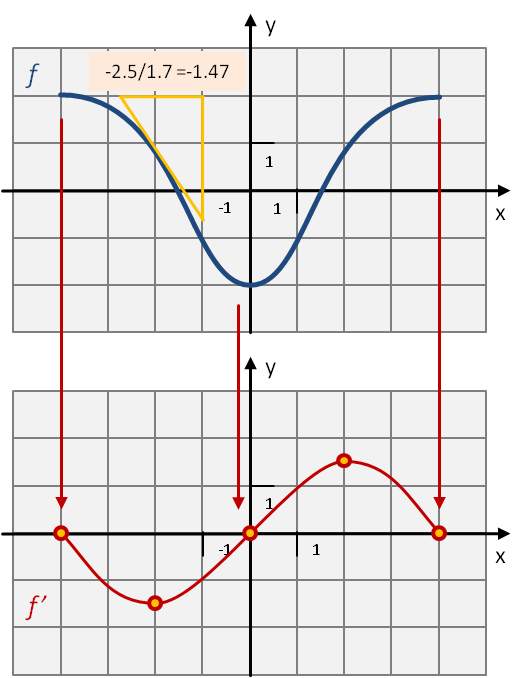

We see
- horizontal tangents at \( (-3,2) \), \( (0,-2) \), and \( (3,2) \), therefore \( f' \) vansihes for \( x \in \{-3, 0, 3\} \).
- \( f \) is strictly decreasing on \( (-3,0) \) and strictly increasing in \( (0, 3) \), therefore \( f' \) is negative for
\( x \in (-3,0) \) and positive for \( x \in (0,3) \).
- by means of slope triangles we estimate the value of the slope at different points of the graph.
Hence:
|
|
Exercise 6: Differentiation Practice |
| |
Find both the derivative with respect to \( x \), i.e. \( \frac{\textrm{d} \, f(x,t)}{\textrm{d} \, x} \), and \( t \), i.e.
\( \frac{\textrm{d} \, f(x,t)}{\textrm{d} \, t} \), for
\[
f(x,t) \, \, = \, \, \frac{t}{x^2} \, + \frac{x}{t} \, .
\]
|
|
Hint
(please, click on the "+" sign to read more)
Apply the differentiation rules such that you assume that \( x \) is the variable for differentiation and \( t \) is a constant.
Then, apply the differentiation rules such that you assume that \( t \) is the variable for differentiation and \( x \) is a constant.
|
|
Solution
(please, click on the "+" sign to read more)
The derivative w.r.t. \( x \) is
\[
\frac{\textrm{d} \, f(x,t)}{\textrm{d} \, x} \, \, = \, \, f_x(x,t) \, \, = \, \, \frac{\textrm{d}}{\textrm{d} \, x}
\left( \frac{t}{x^2} \, + \frac{x}{t} \right)
\, \, = \, \,
-\frac{2 t}{x^3} \, + \, \frac{1}{t} \, \, = \, \, \frac{x^3 - 2t^2}{x^3 t} \, ,
\]
and the derivative w.r.t. \( t \) is
\[
\frac{\textrm{d} \, f(x,t)}{\textrm{d} \, t} \, \, = \, \, f_t(x,t) \, \, = \, \, \frac{\textrm{d}}{\textrm{d} \, t} \left( \frac{t}{x^2}
\, + \frac{x}{t} \right) \, \, = \, \, \frac{1}{x^2} \, - \, \frac{x}{t} \, \, = \, \, \frac{t - x^3}{x^2 t} \, .
\]
|
|
|
